Products
Every valve is built to its named standard, in the sizes, pressure classes, materials and trims a process line actually calls for. The shared range sits below the four lines.

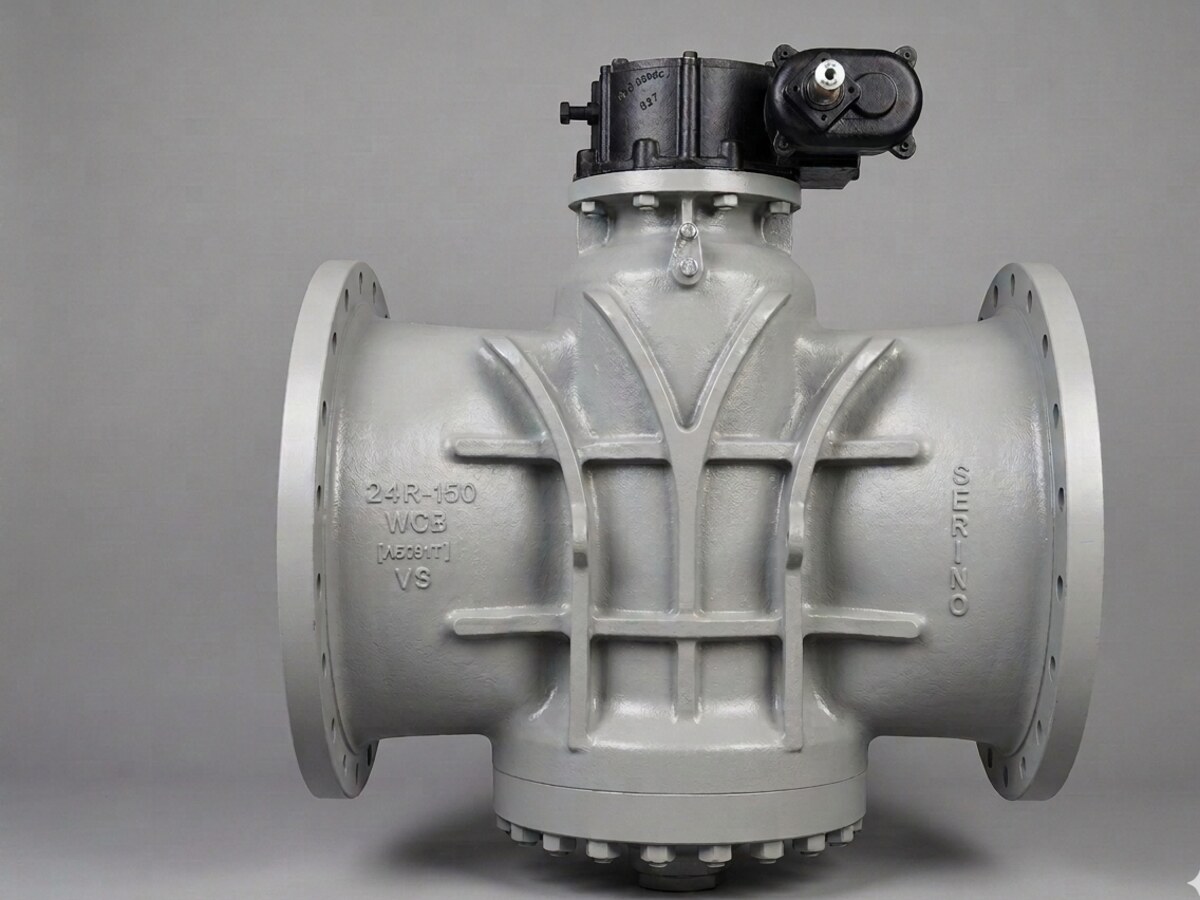

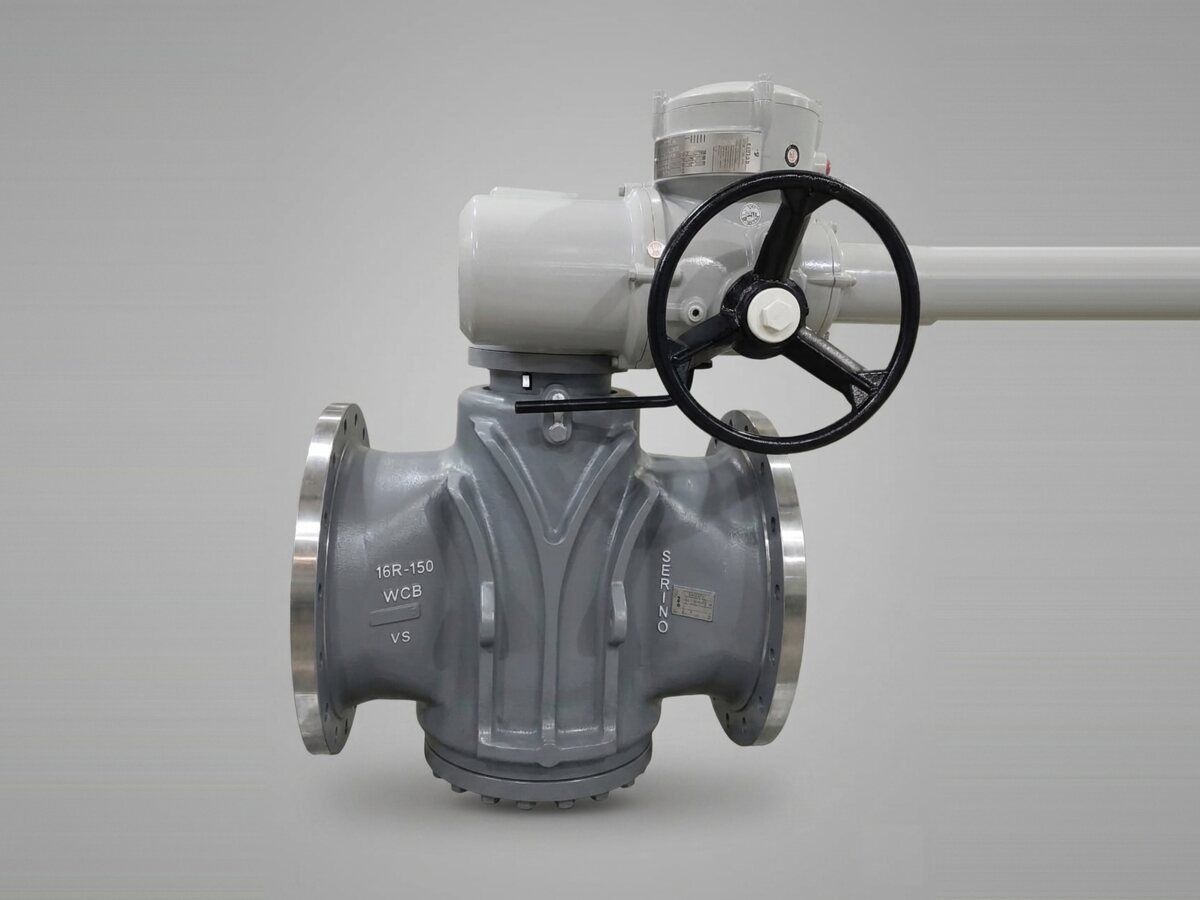

API 6D · ISO 14313 · API 599 · BS 5353
A quarter-turn valve for fast, reliable isolation. The cylindrical or tapered plug gives clean shut-off and quick operation where a line is opened and closed often.
| Standards | API 6D, ISO 14313, API 599, BS 5353 |
|---|---|
| Size range | 1/2″ (15 DN) to 24″ (600 DN) |
| Pressure class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Material | Carbon Steel, Alloy Steel, Stainless Steel incl. Duplex |
| Trim | No 1, 5, 8, 10, 12 |

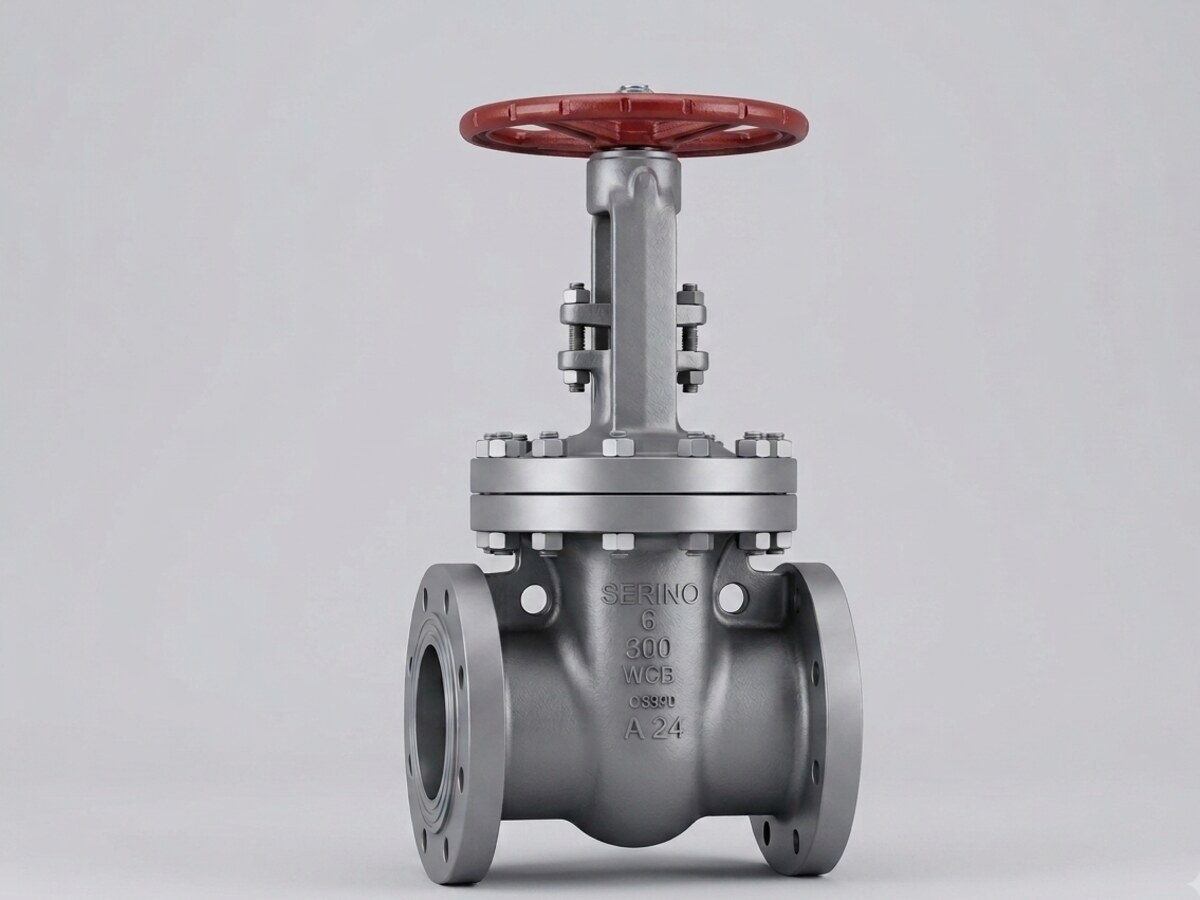

API 6D · ISO 10434 · API 600 · API 602
A full-bore isolation valve. Fully open, the gate clears the bore for minimal pressure drop, which makes it the standard choice for on/off duty rather than throttling.
| Standards | API 6D, ISO 10434, API 600, API 602 |
|---|---|
| Size range | 1/2″ (15 DN) to 24″ (600 DN) |
| Pressure class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Material | Carbon Steel, Alloy Steel, Stainless Steel incl. Duplex |
| Trim | No 1, 5, 8, 10, 12 |

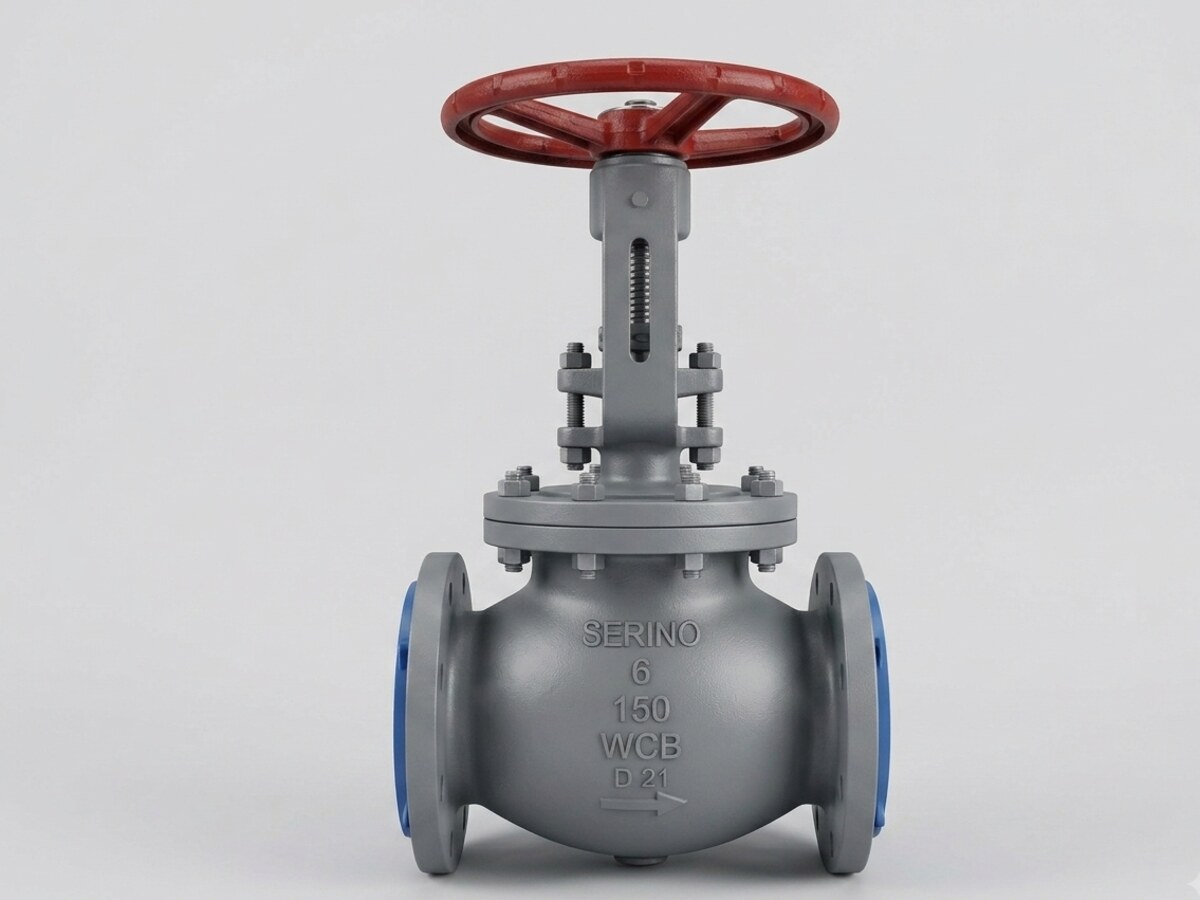

API 623 · BS 1873
A throttling valve. The disc-against-seat action gives fine, repeatable flow regulation and a tight shut-off, for service where the line is modulated rather than simply isolated.
| Standards | API 623, BS 1873 |
|---|---|
| Size range | 1/2″ (15 DN) to 24″ (600 DN) |
| Pressure class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Material | Carbon Steel, Alloy Steel, Stainless Steel incl. Duplex |
| Trim | No 1, 5, 8, 10, 12 |

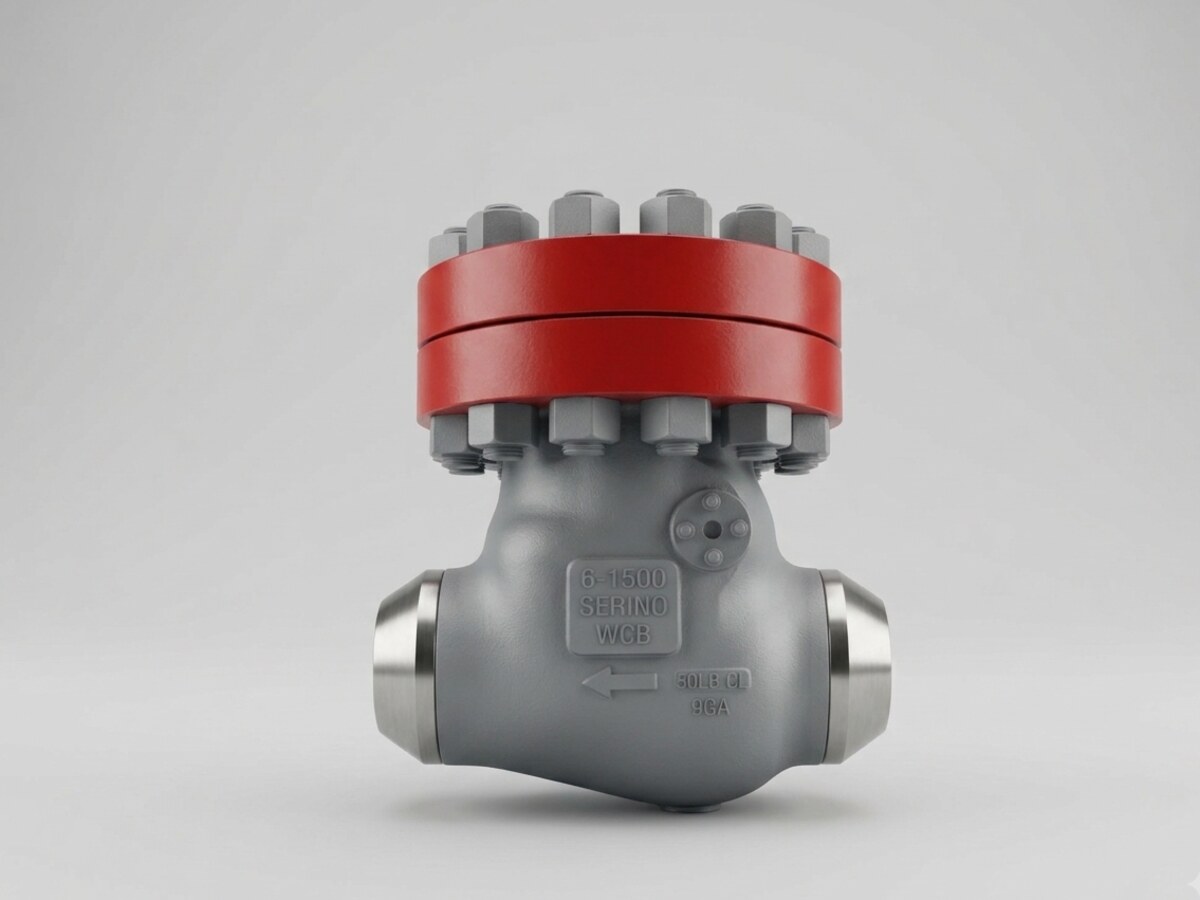

API 6D · ISO 14313 · BS 1868
A non-return valve. The hinged disc swings open under forward flow and seats on reversal, protecting pumps and upstream equipment from backflow without operator action.
| Standards | API 6D, ISO 14313, BS 1868 |
|---|---|
| Size range | 1/2″ (15 DN) to 24″ (600 DN) |
| Pressure class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Material | Carbon Steel, Alloy Steel, Stainless Steel incl. Duplex |
| Trim | No 1, 5, 8, 10, 12 |
Across all valve types
Common to plug, gate, globe and swing-check, unless a line standard above narrows it.
| Size range | 1/2″ (15 DN) to 24″ (600 DN) |
|---|---|
| Pressure class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Material of construction | Carbon Steel, Alloy Steel, Stainless Steel including Duplex Stainless Steel |
|---|---|
| Trim | No 1, 5, 8, 10, 12 |
Contact us for special materials not listed.
